Redaction Modes

Configure Bifrost-managed guardrail redaction for runtime payloads, Bifrost logs, and trace-export connectors.

Overview

Guardrail redaction lets Bifrost rewrite sensitive text detected by supported guardrail providers instead of only detecting or blocking it.

Bifrost-managed redaction is supported by:

• Custom Regex
• Secrets Detection
• Microsoft Presidio
• Azure AI Language PII

Each provider can produce findings with byte ranges and entity types such as EMAIL, PHONE_NUMBER, AWS_ACCESS_TOKEN, or a custom regex entity_type. Bifrost then applies the configured redaction action, strategy, and mode.

Redaction only applies to text that a guardrail provider detects. If a provider does not detect a value, Bifrost cannot redact that value in runtime payloads, logs, or connector exports.

Bifrost-Managed vs Provider-Managed Rewrites

Bifrost-managed redaction is different from provider-managed transformation.

• Bifrost-managed redaction means the guardrail provider returns findings, and Bifrost applies the replacement using redaction_strategy and redaction_mode.
• Provider-managed transformation means an external guardrail provider returns already-transformed text for Bifrost to apply.

Only one rewrite owner can apply to a given request or response phase. If the same phase produces both provider-managed transformed text and Bifrost-managed redaction findings, Bifrost fails closed with a guardrail intervention instead of trying to merge the two rewritten outputs. Bifrost also rejects multiple provider-managed transformed outputs for the same phase because the final replacement would be ambiguous.

Detection-only and blocking guardrails can still run alongside Bifrost-managed redaction. The restriction applies when more than one guardrail path attempts to rewrite the same input or output content.

Actions

The action field controls what happens when the provider finds sensitive text.

Action	Behavior
detect_only	Records the detection but does not block or rewrite content.
block	Returns a guardrail intervention when a detection is found.
redact	Rewrites detected text using the selected redaction strategy and mode.

redaction_strategy and redaction_mode only change request, response, log, or trace content when action is redact.

Redaction Strategies

Strategies control the replacement value used by the non-reversible runtime mode.

Strategy	Example	Notes
replace	[e-mail] -> [EMAIL]	Default strategy. Keeps only the entity type.
mask	[e-mail] -> [EMAIL:****************]	Preserves approximate value length with *.
hash	[e-mail] -> [EMAIL:8c7dd922ad47494f]	Uses a deterministic short hash for the detected value.

Reversible modes use numbered placeholders such as [EMAIL-1] so a permitted user can reveal the original values in Bifrost logs.

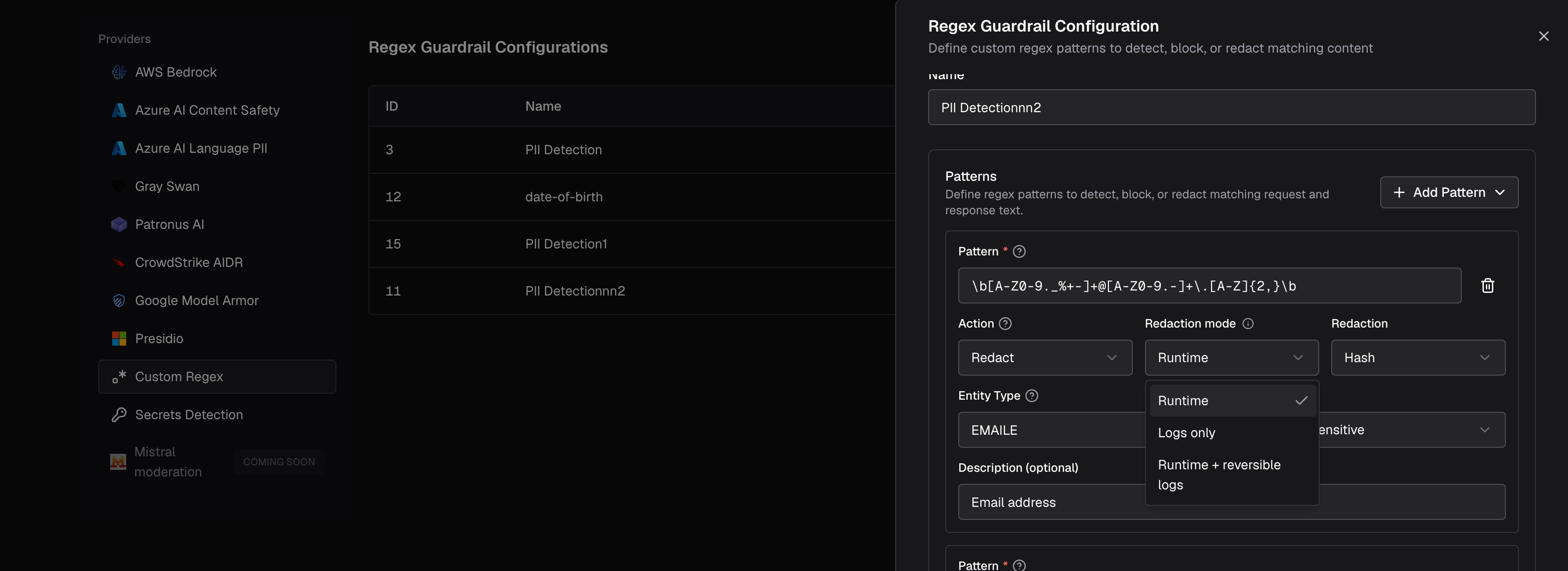

Redaction Modes

Redaction mode decides where Bifrost applies the rewrite.

Mode	API value	Runtime request/response	Bifrost logs	Trace/export connectors	Reveal supported
Runtime	runtime	Redacted with replace, mask, or hash	Redacted the same way	Redacted content only	No
Logs only	logs_only	Left raw	Redacted with reversible placeholders	Placeholderized content	Yes, for Bifrost logs only
Runtime + reversible logs	runtime_reversible	Redacted with reversible placeholders	Redacted with reversible placeholders	Placeholderized content	Yes, for Bifrost logs only

Runtime (runtime)

Use runtime when sensitive text should not reach the model provider or the caller. Bifrost rewrites detected text in the live request or response and stores the already-redacted value in Bifrost logs.

Example with redaction_strategy: "replace":

Contact [e-mail]

becomes:

Contact [EMAIL]

Logs only (logs_only)

Use logs_only when the model should receive the original text, but Bifrost logs and trace exports should not store raw sensitive values.

Runtime content stays unchanged. Bifrost logs and trace-export connectors receive placeholders:

Contact [EMAIL-1]

The placeholder mapping is stored with the Bifrost log row for reveal. It is not sent to connectors.

Runtime + reversible logs (runtime_reversible)

Use runtime_reversible when runtime content should be redacted, but authorized users still need a controlled way to view the original values in Bifrost logs.

Runtime content, Bifrost logs, and trace-export connectors use the same placeholder style:

Contact [EMAIL-1]

Reveal

Reveal is Enterprise-only and applies only to Bifrost logs.

Users need the Logs:Reveal permission to reveal original values for a log that has reversible redaction data. When the caller has that permission, the log detail response can include the placeholder mapping for that log, for example:

{
  "redaction_mapping": {
    "input": {
      "EMAIL-1": "[e-mail]"
    },
    "output": {
      "PHONE_NUMBER-1": "[phone]"
    }
  }
}

Important details:

• Reveal is scoped to Bifrost logs, not external destinations.
• The mapping is stored with the log row and is deleted when the log row is deleted.
• When an encryption key is configured, the mapping is encrypted before storage.
• The reveal response is marked Cache-Control: no-store.
• Data Access Control still applies when fetching or revealing a log.

If content logging is disabled, Bifrost does not persist request/response content or redaction reveal data for that log. In that setup, there is nothing to reveal later.

Connector Exports

For trace-export connectors, Bifrost applies raw-to-placeholder replacements before the completed trace is exported.

This keeps exported span content aligned with Bifrost log redaction for reversible modes, while keeping the reversible mapping inside Bifrost.

Destination type	Behavior
Trace-export connectors such as OpenTelemetry, Datadog, Kafka, Pub/Sub, and BigQuery	Receive redacted or placeholderized content. The reveal mapping is not exported.
Prometheus metrics	No request/response content is exported, so there is no redaction payload to apply.
Bifrost logs	Store redacted content and, for reversible modes, the reveal mapping.

This section describes Bifrost’s completed-trace export path. Integrations that do not consume completed Bifrost traces should not be assumed to receive the same connector redaction behavior.

Provider Defaults

Provider	Default action	Default strategy	Default mode
Custom Regex	block	replace	runtime
Secrets Detection	block	replace	runtime
Microsoft Presidio	detect_only	replace	runtime
Azure AI Language PII	detect_only	replace	runtime

For redaction, set action: "redact" explicitly. Relying on defaults is usually the wrong move here, especially for Presidio and Azure AI Language PII.

Edge Cases

• Redaction is text-based. It does not inspect image pixels, audio, or arbitrary binary content.
• Custom Regex uses Go’s RE2-compatible regexp engine.
• Overlapping findings are resolved into a non-overlapping set before replacement.
• Bifrost-managed redaction cannot be combined with provider-managed transformed output for the same request or response phase.
• Input redaction cannot safely run together with raw-body passthrough transformations; Bifrost fails closed rather than forwarding an inconsistent payload.
• If a request uses both input and output redaction, Bifrost carries replacements forward so raw log fields and exported trace content are redacted consistently.
