SGLang

SGL/SGLang API conversion guide - OpenAI-compatible format, parameter handling, streaming, tool support

Overview

SGL (SGLang) is an OpenAI-compatible local/remote inference engine used for serving models with high throughput. Bifrost delegates all operations to the OpenAI provider implementation. Key features:

• OpenAI API compatibility - Identical request/response format
• Full streaming support - Server-Sent Events with usage tracking
• Tool calling - Complete function definition and execution
• Text embeddings - Support for embedding models
• Parameter filtering - Removes unsupported fields for compatibility

Supported Operations

Operation	Non-Streaming	Streaming	Endpoint
Chat Completions	✅	✅	/v1/chat/completions
Responses API	✅	✅	/v1/chat/completions
Text Completions	✅	✅	/v1/completions
Embeddings	✅	-	/v1/embeddings
List Models	✅	-	/v1/models
Image Generation	❌	❌	-
Speech (TTS)	❌	❌	-
Transcriptions (STT)	❌	❌	-
Files	❌	❌	-
Batch	❌	❌	-

Unsupported Operations (❌): Speech, Transcriptions, Files, and Batch are not supported by the upstream SGL API. These return UnsupportedOperationError.

SGL is typically self-hosted. Ensure BaseURL is configured correctly pointing to your SGL instance (e.g., http://localhost:8000).

Setup & Configuration

Configure SGLang as a provider.

Web UI

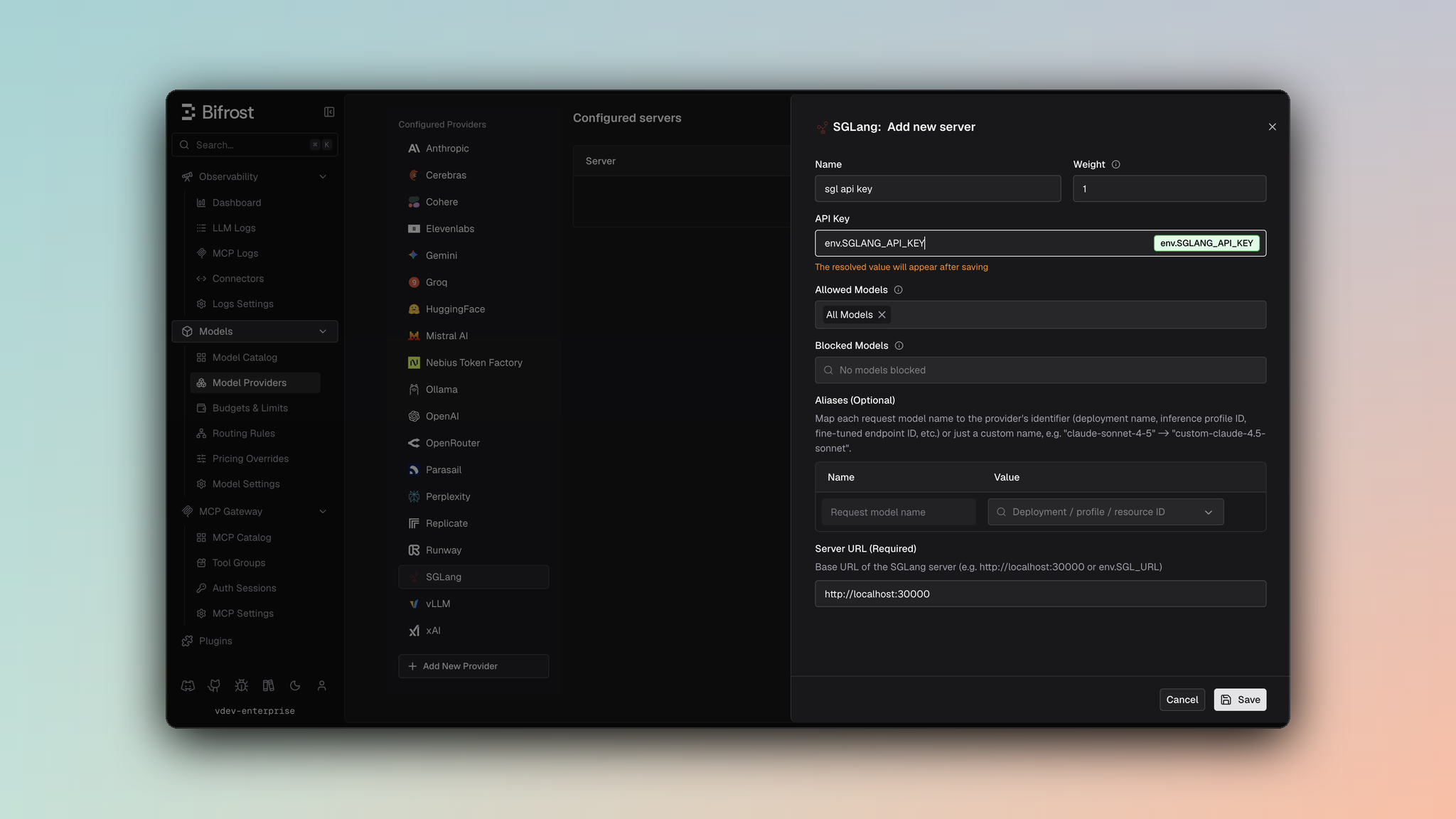

1. Navigate to Models > Model Providers. Look for SGLang under Configured Providers. If it is missing, click on Add New Provider and select SGLang.
2. Click Add New Server or edit an existing key.
3. Set a name for your key.
4. Leave API Key blank for local servers. If your endpoint requires auth, paste a bearer token directly or use an environment variable.
5. Set SGLang URL to http://localhost:8000 or your remote SGLang endpoint.
6. Set Allowed Models to All Models (default) or the specific model allowlist you want this key to serve.
7. Save the provider configuration.

config.json

{
  "providers": {
    "sgl": {
      "keys": [
        {
          "name": "sgl-local",
          "value": "",
          "models": [
            "*"
          ],
          "weight": 1.0,
          "sgl_key_config": {
            "url": "http://localhost:8000"
          }
        }
      ]
    }
  }
}

API

curl --location 'http://localhost:8080/api/providers' \
--header 'Content-Type: application/json' \
--data '{
  "provider": "sgl",
  "keys": [
    {
      "name": "sgl-local",
      "value": "",
      "models": [
        "*"
      ],
      "weight": 1.0,
      "sgl_key_config": {
        "url": "http://localhost:8000"
      }
    }
  ]
}'

Go SDK

case schemas.SGL:
    return []schemas.Key{{
        Name:   "sgl-local",
        Value:  *schemas.NewEnvVar(""),
        Models: []string{"*"},
        Weight: 1.0,
        SGLKeyConfig: &schemas.SGLKeyConfig{
            URL: *schemas.NewEnvVar("http://localhost:8000"),
        },
    }}, nil

---

1. Chat Completions

Request Parameters

SGL supports all standard OpenAI chat completion parameters. For full parameter reference and behavior, see OpenAI Chat Completions.

Filtered Parameters

Removed for SGL compatibility:

• prompt_cache_key - Not supported
• verbosity - Anthropic-specific
• store - Not supported
• service_tier - OpenAI-specific

SGL supports all standard OpenAI message types, tools, responses, and streaming formats. For details on message handling, tool conversion, responses, and streaming, refer to OpenAI Chat Completions.

---

2. Responses API

Fallback to Chat Completions with format conversion:

ResponsesRequest → ChatRequest → Response conversion

Same parameter support as Chat Completions.

---

3. Text Completions

SGL supports legacy text completion format:

Parameter	Mapping
prompt	Direct pass-through
max_tokens	max_tokens
temperature, top_p	Direct pass-through
frequency_penalty, presence_penalty	Supported

---

4. Embeddings

SGL supports text embeddings for vector generation:

Parameter	Notes
input	Text or array of texts
model	Embedding model name
encoding_format	”float” or “base64”
dimensions	Model-specific dimension count

Response returns embedding vectors with usage information.

---

5. List Models

Lists available models from SGL server with capabilities.

---

Unsupported Features

Feature	Reason
Speech/TTS	Not offered by SGL API
Transcription/STT	Not offered by SGL API
Batch Operations	Not offered by SGL API
File Management	Not offered by SGL API

---

SGL requires BaseURL configuration pointing to your SGL instance (e.g., http://localhost:8000 for local, https://sgl.example.com for remote).

Caveats

BaseURL Configuration Required

Severity: High Behavior: BaseURL must be explicitly configured through sgl_key_config.url or network_config.base_url Impact: Requests fail without proper configuration Code: Requests call baseURLOrError before contacting SGL

Cache Control Stripped

Severity: Medium Behavior: Cache control directives are removed from messages Impact: Prompt caching features don’t work Code: Stripped during JSON marshaling

Parameter Filtering

Severity: Low Behavior: OpenAI-specific fields filtered out Impact: prompt_cache_key, verbosity, store removed Code: filterOpenAISpecificParameters

User Field Size Limit

Severity: Low Behavior: User field > 64 characters silently dropped Impact: Longer user identifiers are lost Code: SanitizeUserField enforces 64-char max
