xAI

xAI API conversion guide - OpenAI-compatible format, Grok models, vision support, reasoning, and parameter handling

Overview

xAI is an OpenAI-compatible provider powering the Grok family of models. Bifrost delegates to the OpenAI implementation with standard parameter filtering. Key features:

• Full OpenAI compatibility - Chat, text completion, and responses
• Vision support - Image URLs and base64 encoding for multimodal models
• Streaming support - Server-Sent Events with delta-based updates
• Reasoning support - Extended thinking for Grok reasoning models
• Tool calling - Complete function definition and execution
• Parameter filtering - Removes unsupported OpenAI-specific fields

Supported Operations

Operation	Non-Streaming	Streaming	Endpoint
Chat Completions	✅	✅	/v1/chat/completions
Responses API	✅	✅	/v1/responses
Text Completions	✅	✅	/v1/completions
Image Generation	✅	-	/v1/images/generations
Context Compaction	✅	-	/v1/responses/compact
List Models	✅	-	/v1/models
Embeddings	❌	❌	-
Speech (TTS)	❌	❌	-
Transcriptions (STT)	❌	❌	-
Files	❌	❌	-
Batch	❌	❌	-

Unsupported Operations (❌): Embeddings, Speech, Transcriptions, Files, and Batch are not supported by the upstream xAI API. These return UnsupportedOperationError.

Setup & Configuration

Configure xAI as a provider.

Web UI

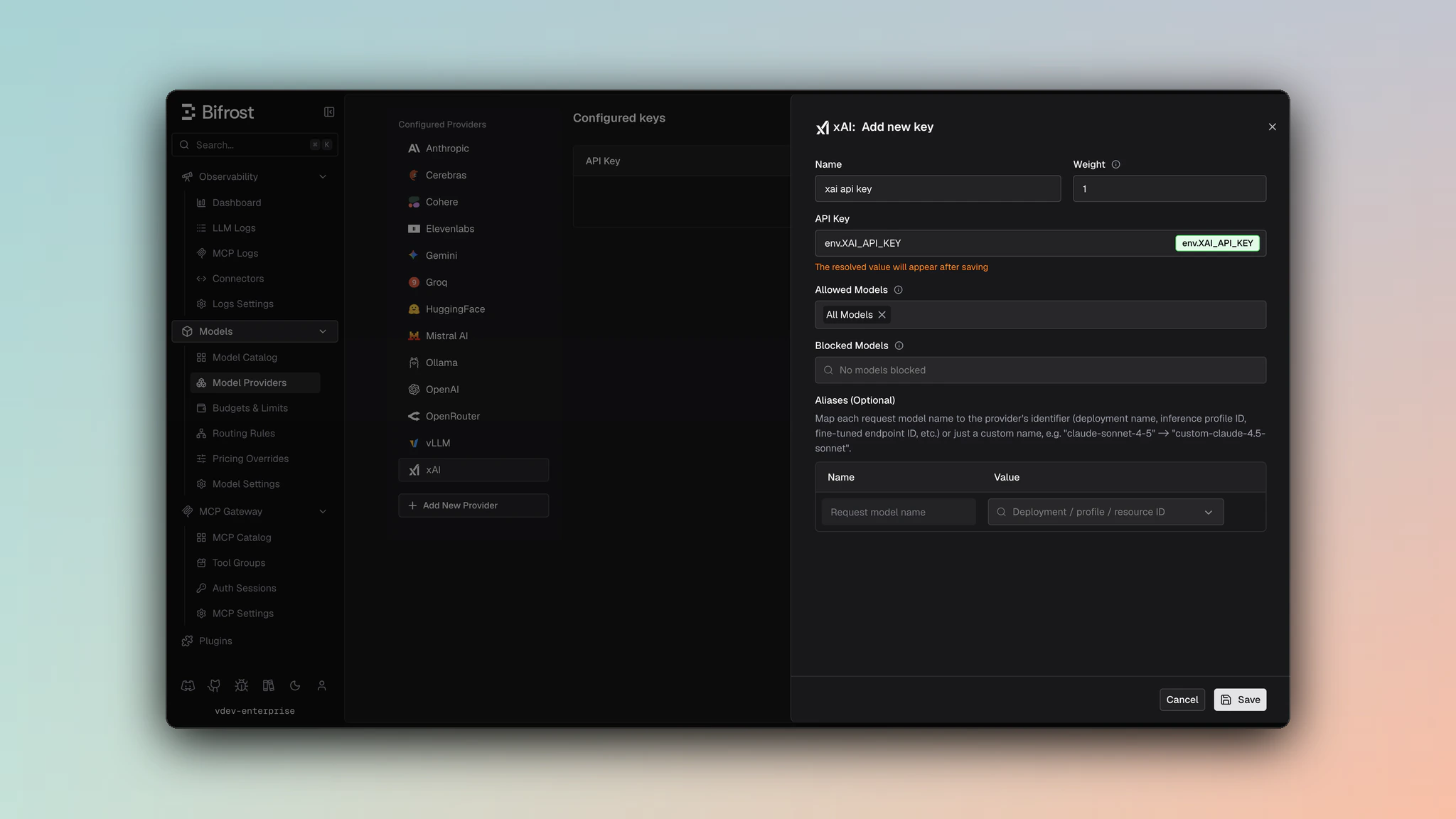

1. Navigate to Models > Model Providers. Look for xAI under Configured Providers. If it is missing, click on Add New Provider and select xAI.
2. Click Add Key or edit an existing key.
3. Set a name for your key.
4. Paste your API key directly or use an environment variable (for example, env.XAI_API_KEY).
5. Set Allowed Models to All Models (default) or the specific model allowlist you want this key to serve.
6. Save the provider configuration.

config.json

{
  "providers": {
    "xai": {
      "keys": [
        {
          "name": "xai-key-1",
          "value": "env.XAI_API_KEY",
          "models": [
            "*"
          ],
          "weight": 1.0
        }
      ]
    }
  }
}

API

Refer to the API documentation for Provider Keys Management.

Go SDK

case schemas.XAI:
    return []schemas.Key{{
        Name:   "xai-key-1",
        Value:  *schemas.NewSecretVar("env.XAI_API_KEY"),
        Models: []string{"*"},
        Weight: 1.0,
    }}, nil

---

1. Chat Completions

Request Parameters

xAI supports all standard OpenAI chat completion parameters. For full parameter reference and behavior, see OpenAI Chat Completions.

Filtered Parameters

Removed for xAI compatibility:

• prompt_cache_key - Not supported
• verbosity - Anthropic-specific
• store - Not supported
• service_tier - Not supported

Reasoning Support

xAI’s grok-3-mini model supports extended reasoning via the standard reasoning_effort field:

{
  "model": "xai/grok-3-mini",
  "messages": [...],
  "reasoning_effort": "high"
}

Model-Specific Feature: The reasoning_effort parameter is only supported by grok-3-mini. Other Grok-3 and Grok-4 models will return an error if this parameter is specified.

Bifrost converts from the internal Reasoning structure to xAI’s reasoning_effort string format.

Vision Support

xAI vision models support both image URLs and base64-encoded images:

{
  "model": "xai/grok-2-vision-1212",
  "messages": [{
    "role": "user",
    "content": [
      {"type": "text", "text": "What is in this image?"},
      {"type": "image_url", "image_url": {"url": "https://..."}}
    ]
  }]
}

Supported Image Formats:

• ✅ Image URLs
• ✅ Base64-encoded images
• ✅ Multiple images per message

xAI supports all standard OpenAI message types, tools, responses, and streaming formats. For details on message handling, tool conversion, responses, and streaming, refer to OpenAI Chat Completions.

---

2. Responses API

xAI’s Responses API is forwarded directly to /v1/responses:

ResponsesRequest → /v1/responses → ResponsesResponse

Same parameter support and message handling as Chat Completions. Full streaming support available.

---

3. Text Completions

xAI supports legacy text completion format:

Parameter	Mapping
prompt	Direct pass-through
max_tokens	max_tokens
temperature, top_p	Direct pass-through
stop	Stop sequences
frequency_penalty, presence_penalty	Penalty parameters

Streaming support available via stream: true.

---

4. Image Generation

xAI’s image generation uses the OpenAI-compatible format.

Request Conversion

xAI uses the same conversion as OpenAI (see OpenAI Image Generation):

• Model & Prompt: bifrostReq.Model → req.Model, bifrostReq.Prompt → req.Prompt
• Parameters: All fields from bifrostReq (ImageGenerationParameters) are embedded directly into the request struct via struct embedding
• Endpoint: /v1/images/generations

Note : quality, size and style parameters are not supported by xAI’s API at the moment.

Response Conversion

Responses are unmarshaled directly into BifrostImageGenerationResponse.

Streaming: Image generation streaming is not supported by xAI.

---

5. List Models

Lists available xAI models with their capabilities and context lengths.

---

6. Context Compaction

xAI supports context compaction via its OpenAI-compatible /v1/responses/compact endpoint. Bifrost forwards the request to https://api.x.ai/v1/responses/compact.

Request and response format is identical to OpenAI Context Compaction. The response output contains the original user messages plus a final item with type: "response.compaction" and encrypted_content. Pass this output as input to future xAI Responses API calls.

Endpoint: POST /v1/responses/compact

---

Unsupported Features

Feature	Reason
Embedding	Not offered by xAI API
Speech/TTS	Not offered by xAI API
Transcription/STT	Not offered by xAI API
Batch Operations	Not offered by xAI API
File Management	Not offered by xAI API

---
